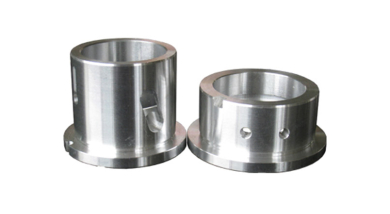

The purpose of the bushing

Bushings are used in: packaging machinery, textile machinery, mining machinery, metallurgical machinery, printing machinery, tobacco machinery, forging machinery, various types of machine tools and interchangeable machinery transmission connections. For example: pulleys, sprockets, gears, propellers, large fans and various other couplings, etc.; features: large torque, high precision, convenient and quick assembly and disassembly, simple operation, good positioning, and reduce the scrap rate of matched shafts and hubs. It can be reused without damaging the mating surface, making it the most ideal and economical choice at present.

1. Installation: The expansion sleeve has been coated with lubricating oil before leaving the factory and can be directly installed and used. When installing, firstly screw three bolts into the screw holes of the flange of the other part to be evenly distributed along the circumference to open the inner sleeve and outer sleeve. Then put the expansion sleeve in the hub hole at the designed position, and use the force measuring wrench to tighten the bolts. The method of tightening is that each bolt is tightened to 1/4 of the rated torque at a time. The tightening sequence is bounded by the slit. Tighten the screws in a symmetrical direction to ensure that the rated torque is reached.

2. Disassembly: Loosen all bolts a few turns before disassembling. Then screw the bolt top loose expansion sleeves crosswise into the disassembled screw holes.

3. Protection: Prevent the expansion sleeve from being polluted during installation. On machines operating in the open air or in a poor working environment, anti-rust grease should be regularly applied to the exposed end faces and bolts of the expansion sleeve, and the expansion sleeve type with better rust resistance should be selected. Expansion coupling sleeve is a modern new advanced mechanical basic part. It is a new type of non-key coupling device that is widely used in the world to realize the connection of mechanical parts and shafts. It is a new type of non-key coupling device that realizes load transmission by tightening the pressure and friction force between the containing surface by tightening the 12.9 grade high-strength screws.
